Polyurethane 5-channel Cable Protector

stage truss

Polyurethane 5-channel Cable Protector

Skymear Polyurethane Rubber Cable Floor Cover Protector is made of strong, dense polyurethane used in outdoor events. It can provide protection for cords and cables from walk-over pedestrian and light vehicle traffic.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Polyurethane Rubber Cable Floor Cover Protector can effectively protect cables and wires from damage caused by heavy equipment weighing up to 48,000 lbs (21744 kg) per axle while providing safe crossing for pedestrian and vehicle traffic. Cables, cords,wires and hoses  up to 0.75"(19mm) in diameter can be easily placed into the proper channels under the reinforced, hinged lid, which makes cable placement a breeze, and a five-bar tread pattern on the surface providing maximum traction. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These Five-Channel Cable Protectors can extend to any necessary length with the connectors.


     * Protect cables and hoses up to 0.75"(19mm) in diameter

     * Support up to 48,000 lbs (21744 kg) per axle

     * Features five cable channels

     * All-weather polyurethane construction weighs 14.75 lbs (6.68kg)

     * Male and female connectors


All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.



Features:


    1) Provide safe and easy crossing for pedestrian and vehicle in high traffic areas

    2) Support high loading capacity 48,000 lbs (21744 kg) per axle for heavy equipment

    3) Maximum traction with patented tread on the reinforced hinged lid

    4) Warning symbols molded into lid surface with universal safety color for high visibility

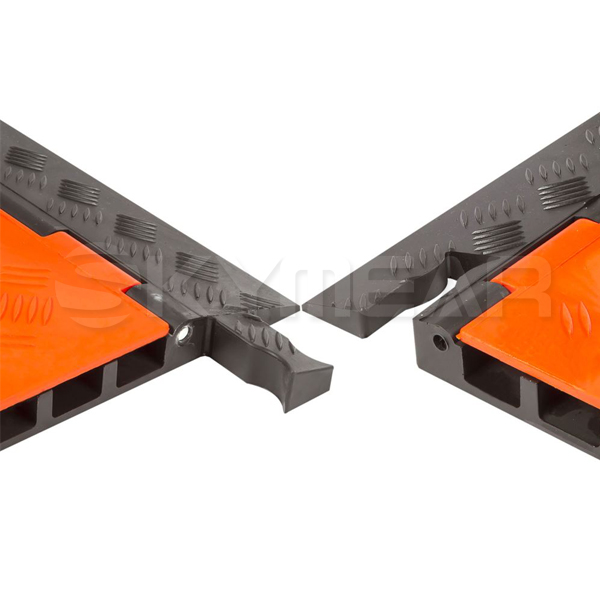

    5) Dog-bone design connectors interlock modular ramps together firmly



Specifications:

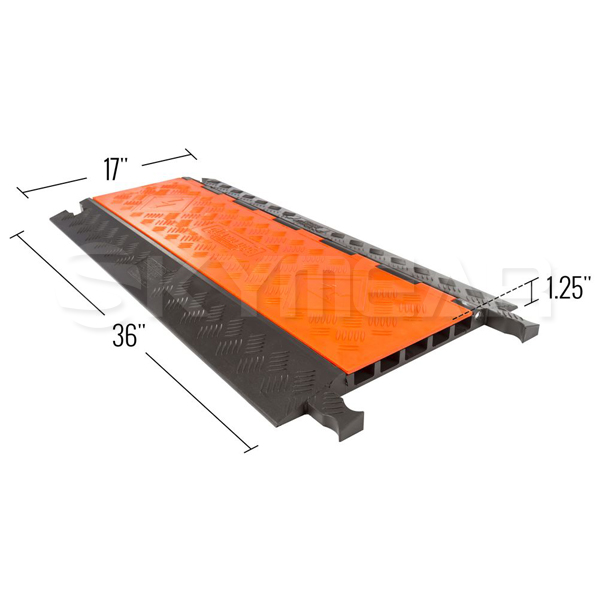

    1) Overall Dimensions:36"(L)x17"(W)x1.25"(H)/914mm(L)x432mm(W)x32(H)mm                2) Channel Dimensions:1.32"(W)x1.33"(H)/33mm(W)x34mm(H)

    3) Self-weight:14.75 lbs/6.69 kg

    4) Color: Red lid & Black ramp

    5) Material:Polyurethane (PU)

    6) Loading capacity:48000 lbs/21744 kg per axle



Photos:
