Light-weighted 5-channel Cable Protector,15KG

stage truss

Light-weighted 5-channel Cable Protector,15KG

Skymear Lightweight but Durable Cable Protector 5 Channel is made of strong, dense rubber used in outdoor events. It can provide protection for cords and cables from walk-over pedestrian and light vehicle traffic.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Lightweight but Durable Cable Protector 5 Channel can effectively protect valuable cables and wires from damage caused by heavy-duty vehicle traffic. These cable ramps have been enlarged and strenthened on the rubber base and hinged PVC lid with diamond tread surfaces for enhanced foot and wheel traction. The lid with bright yellow color can increase the visibility for pedestrians and vehicles in high traffic areas. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These Five-Channel Cable Protectors can extend to any necessary length with the connectors.


     * Protect cables and hoses up to 1"(25mm) in diameter

     * Support up to 30,000 lbs (13,500 kg) per axle

     * Features five cable channels

     * All-weather yellow and black rubber construction weighs 24 lbs (11kg)

     * Male and female connectors


All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.



Features:


    1) Provide safe and easy crossing for pedestrian and vehicle in high traffic areas

    2) Support high loading capacity 30,000 lbs (13,500 kg) per axle for heavy equipment

    3) Maximum traction with diamond tread on the non-slip surface

    4) Warning symbols molded into lid surface with universal safety bright yellow for high visibility

    5) T-connectors interlock modular ramps together firmly



Specifications:


    1) Overall Dimensions:35"(L)x19.68"(W)x1.96"(H)/900mm(L)x500mm(W)x50(H)mm          2) Channel Dimensions:1.3"(W)x1.18"(H)/35mm(W)x30mm(H)

    3) Self-weight:24 lbs/11 kg

    4) Color: Yellow lid & Black ramp

    5) Material:Rubber&PVC

    6) Loading capacity:30,000 lbs/13,500 kg per axle

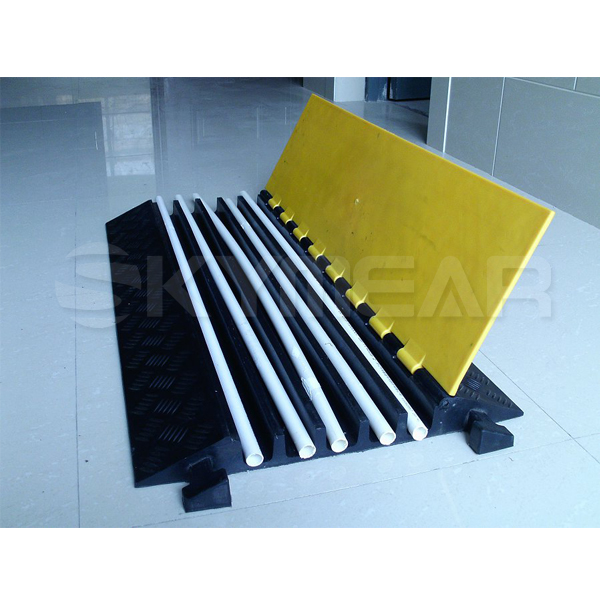

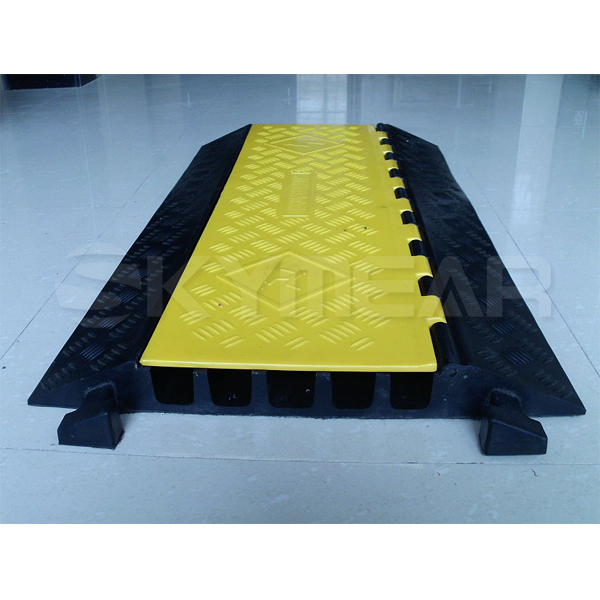

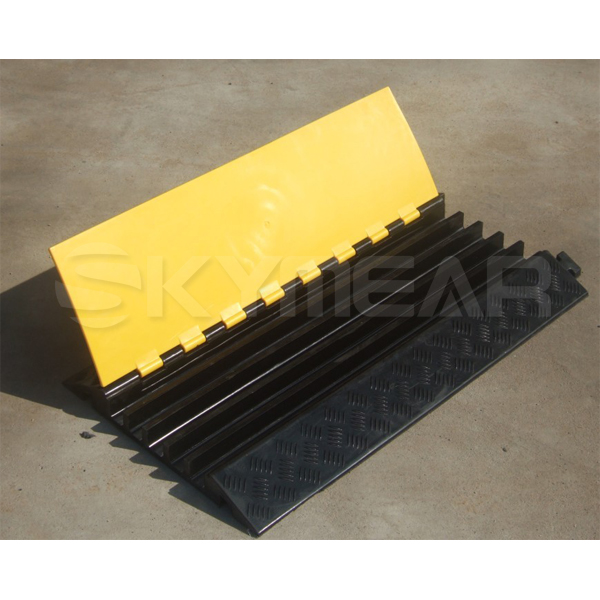

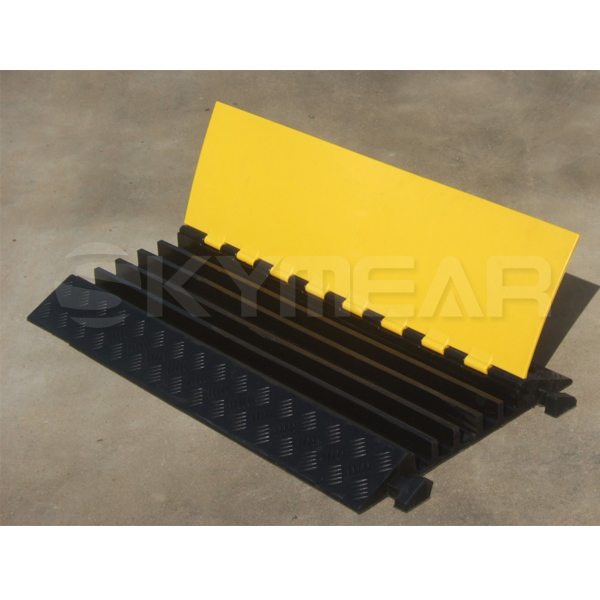

Photos:
