Spigot Ladder Truss 220mm

stage truss

Spigot Ladder Truss 220mm

Skymear Spigot Ladder Truss 220mm for sale offers an optimum loading capacity and has minimum transport volume with its lightweight construction, which can be used in wide range for any exhibition display and trade shows.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Spigot Ladder Truss 220mm for sale can be used for any exhibition display booths, and has outstanding weight loading capacities despite its small sizes and light self-weight. This aluminum ladder truss is 8.66” (220mm) x .063” (1.6mm), and is available in square profiles in lengths of 0.5M, 1M or 2M lengths. It is fast and easy-to-use, and typically used for glow totems, trade show displays, trade show booths and indoor& outdoor events, trade fair construction, shop fitting and advertisement.



Specification:


Product name:Spigot Truss 220x220mm/8.66"x8.66"
Model No.
:LA220
Material:Aluminum alloy 6061-T6/6082-T6

Truss width

:220*220mm
Standard shape:Ladder truss, Triangle truss, Square/Box truss
Special shape:Circle/Circular/Round/Arched/Curved truss, etc
Main tube
:35*2.0 mm
Brace tube :2 mm
Color:Silver, black or customized

Color

process

:Powder coating and anodize coating are available

Available length

:0.5m, 1m, 2m, 3m, 4m
Application:Stage truss, staging truss, lighting truss, light truss, DJ truss, DJ trussing booth, DJ trade shows, exhibition truss, church, exhibition truss
Connector
:Conical coupler



Features:


  1) Compact, light self-weight

  2) Great strength to weight ratio

  3) Safe and big loading capacity

  4) No deflection in connection points

  5) Smooth Welding points

  6) CE, SGS & TUV certificated

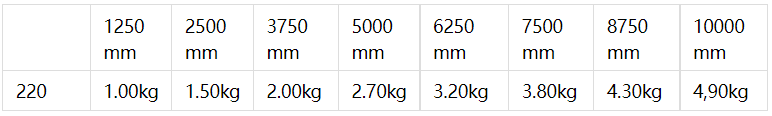

Standard lengths & weights:


Light Duty Ladder Truss offers an optimum loading capacity and has minimum transport volume with its lightweight construction. It is available in the standard aluminium finish, but is also available in a full pallet of powder coated colors so it can be used in wide range of applications, such as trade shows, light-duty display constructions, and other events.




Segments:


● Spigot Ladder Truss 220x220mm/8.66"x8.66"





● Spigot Circle Truss 220x220mm/8.66"x8.66"



Accessories:


The 220mm spigot laddter truss also comes with different standards lengths and is completely customizable to create different size and shapes, whose standard accessories include corner cubes, base plated, etc.



Light-Duty Ladder Truss 220mm is an economy trussing system and widely for light-duty use for DJ totems, trade show booths, DJ booths, and much more. It is possible to do a powder coating or a high gloss/hand polished design within the delivery period, and can leave a beautiful finished display grade look when assembled and connected.
