stage truss

products
Flat Roof-4

stage truss

Flat Roof-4

Skymear Flat Roof Truss System can offer the best and professional solutions for outdoor concerts, festivals, party, and indoor & outdoor events, which features incredible strength, strong stability and speedy construction.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Stage Flat Roof Truss System is tower-based aluminum structures,which has superior performance,durability and tongue connection and are ideal solutions for mega-concerts,festivals,parties and other outdoor big events.Thistruss roof system features compact construction, optimum strength, high-tech appearance and outstanding weight loading capacities. Its flat roof gives it a dynamic look while contributing to efficient water drainage from the canopy. All our stage trusses are manufactured in different sizes, length and shapes from high-grade and lightweight aluminum, which are easy for transportation and setup, and are all according to European standard EN13814 and welding EN1090 and certificated by CE,TUV and SGS certifications.


All our aluminum stage truss roofs are made in China. We can do OEM for your customized service and provide our factory price directly to you.



Specification:


Product name:Aluminum truss flat roof 04
Model No.
:Flat-Roof-4
Roof size:6.2m(L) x 3.25m(W) x 6m(H)
Material:Aluminum alloy 6061-T6/6082-T6
Light-duty truss unit
:100*100mm, 150*150mm, 220*220mm
Medium-duty truss unit:300*300mm,400*400mm,450*450mm
Heavy-duty truss unit:520*520mm,600*700mm,600*900mm,670*1010mm
Standard shape:Ladder truss, Triangle truss, Square/Box truss
Special shape:Circle/Circular/Round/Arched/Curved truss, etc
Truss unit size:0.5m, 1m, 2m, 3m, 4m
Main tube
:50*3 mm
Brace tube :30*2 mm
Color:Silver, black or customized
Color process:Powder coating and anodize coating are available
Roof cover:PVC roof color and side walls available
Application:Stage truss, lighting truss, light truss, DJ truss, mega-concerts, festivals, parties, aluminum truss, indoor & outdoor events, etc
Connector
:Conical Coupler/Bolted Screws



Features:


1)Feature: Non rust, light weight, strong, easy to set up

2)Fast connection for quick, simple and secure assembly

3)Operated with manual chain block or electric chain hoist

4)Supplied complete with internal wind bracing wires & connection accessories

5)Integrated tower base / stage components available

6)PA wing options available on request

7)Full structural calculation report & build manual available

8)CE, SGS & TUV certificated

9)OEM/ODM services

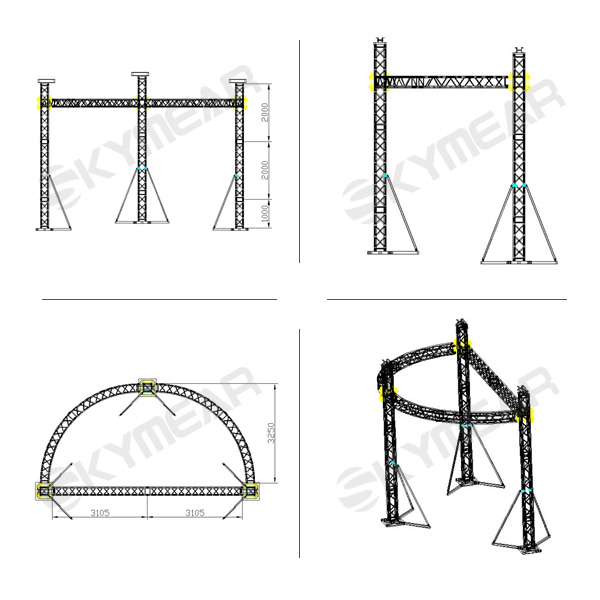

Drawing:

Segments:


Skymear Stage Flat Roof Truss System is the tower-based truss structure without rings, which consists of truss sections,top section,sleeve block,basement, and hoists. It features incredible strength,stability and speedy construction,and is the best choice for rental companies.


a) Stage truss sections:



b) Tower systems


c) Accessories



Skymear Stage Flat Roof Truss System is the most professional choice for mega-concerts,festivals,party and other outdoor events.
