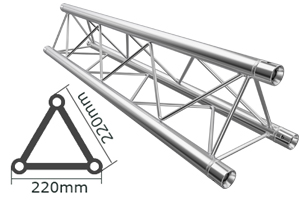

Skymear Spigot Mini Triangle Truss 220x220mm is very strong and has a beautiful finished display grade look when assembled and connected, which is widely used for small to medium shop fittings and exhibition stands.
Skymear Mini Triangle Stage Truss 8.66" x 8.66" can be used for any exhibition display booths, and has outstanding weight loading capacities despite its small sizes and light self-weight. This aluminum mini triangle truss is 8.66” (220mm) x 8.66” (220mm) x .063” (1.6mm), and is available in square profiles in lengths of .5M, 1M or 2M lengths. It is fast and easy-to-use, and typically used for glow totems, trade show displays, trade show booths and indoor& outdoor events, trade fair construction, shop fitting and advertisement.
Specification:
| Product name | : | Spigot Triangle Truss 220x220mm/8.66"x8.66" |
| Model No. | : | TR220 |
| Material | : | Aluminum alloy 6061-T6/6082-T6 |
Truss width | : | 220*220mm |
| Standard shape | : | Triangle truss |
| Special shape | : | Circle/Circular/Round/Arched/Curved truss, etc |
| Main tube | : | 35*2.0 mm |
| Brace tube | : | 2 mm |
| Color | : | Silver, black or customized |
Color process | : | Powder coating and anodize coating are available |
Available length | : | 0.5m, 1m, 2m, 3m, 4m |
| Application | : | Stage truss, staging truss, lighting truss, light truss, DJ truss, DJ trussing booth, DJ trade shows, exhibition truss, church, exhibition truss |
| Connector | : | Conical coupler |
Features:
1) Compact, light self-weight
2) Great strength to weight ratio
3) Safe and big loading capacity
4) No deflection in connection points
5) Smooth Welding points
6) CE, SGS & TUV certificated

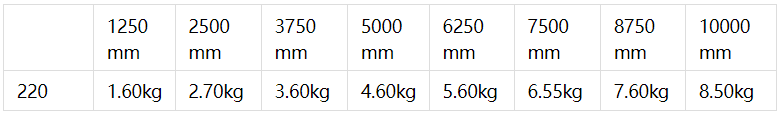

Standard lengths & weights:
Light Duty Mini Triangle Truss offers an optimum loading capacity and has minimum transport volume with its lightweight construction. It is available in the standard aluminium finish, but is also available in a full pallet of powder coated colors so it can be used in wide range of applications, such as trade shows, light-duty display constructions, and other events.
Segments:
● Spigot Triangle Truss 220x220mm/8.66"x8.66"

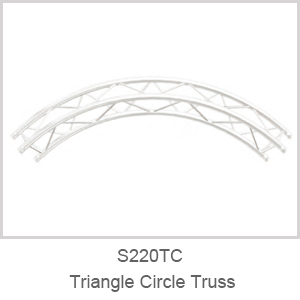

● Spigot Circle Triangle Truss 220x220mm/8.66"x8.66"

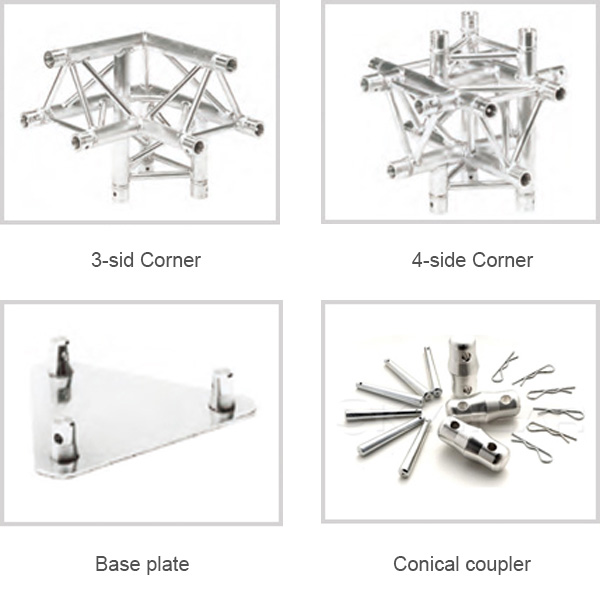

Accessories:
Skymear Mini Triangle Stage Truss is an economy trussing system and widely for light-duty use for DJ totems, trade show booths, DJ booths, and much more. It is possible to do a powder coating or a high gloss/hand polished design within the delivery period, and can leave a beautiful finished display grade look when assembled and connected.
