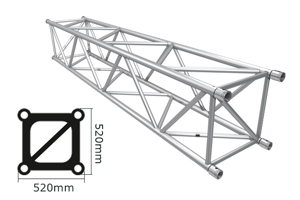

S520-Spigot Truss 520x520mm

S520-Spigot Truss 520x520mm

Skymear spigot truss S520 is adapted for Trade Fair Construction,Shop Fitting and Advertisement. This single tube offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION



Model No.:

S520


Size:

520 x 520 mm

Main tube:

50 x 3 mm


Brace:

30 x 2 mm

Available length:

0.5 - 4 m


Span:

18 - 24 m

Material:

Alu 6082 / 6061


Connector:

Conical coupler




Overview




Skymear Spigot Truss 520x520mm is our another type of durable truss systems, which has superior performance,durability and tongue connection and are ideal solutions for large truss structures, towers and gantries. This truss has compact construction,optimum strength,high-tech appearance and outstanding weight loading capacities, and can be applied for all forms of rigging towers, exhibition gantries and large concert stages.   It is possible to do a powder coating or a high gloss/hand polished design within the delivery periode. S520 truss is fast and easy-to-use, and typically used for glow totems, trade show displays,trade show booths and indoor& outdoor events,trade fair construction,shop fitting and advertisement.


All our aluminum trusses are made in China.We can do OEM for your customized service and provide our factory price directly to you.





Key Benefits:



l Compact, light, mobile product

l  Great strength to weight ratio

l  Safe and big loading capacity

l  No deflection in its connection point

l  Welding points are smooth

l  Fast and easy to assemble

l  Powder coating or a high gloss/hand

   polished design




Tables:




 lS520 Series




    S520-Standard Lengths & Weights  Available



0.5m1m1.5m2m2.5m3m3.5m4m
Squ11.8kg17.1kg22.5kg28.5kg36.2kg39.7kg46.8kg51.3kg




lS520SQU- Square



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S520SQU offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

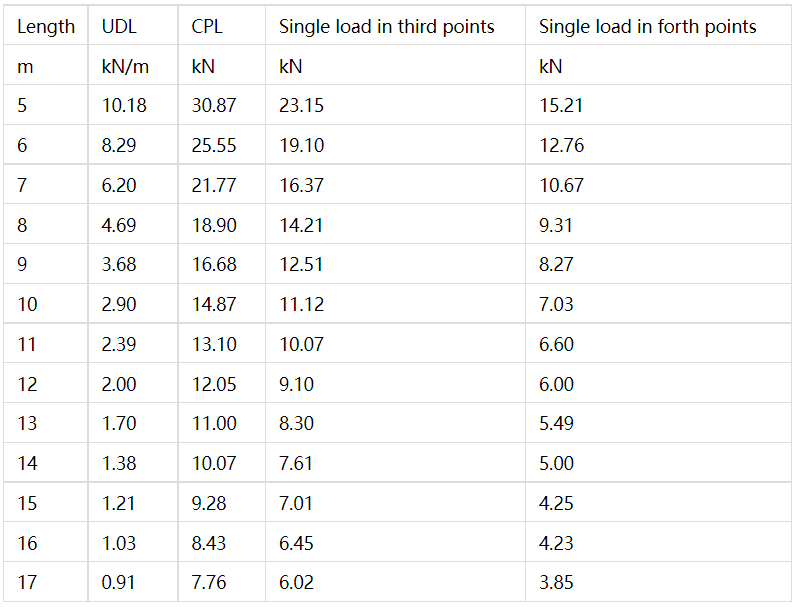

    S520SQU-Load Table


LengthUDLCPL

Single load in

 third points

Single load in

forth points

Single load in

fifth points

mkN/mkNkNkNkN






412.7237.9625.5416.9812.75
510.18
30.8723.1515.21
12.16
68.2925.55
19.10
12.76
10.58
76.20
21.7716.37
10.67
9.08
84.6918.90
14.219.31
7.73
93.68
16.6812.518.27
6.68
102.9014.87
11.12
7.03
6.17
112.3913.1010.076.605.46
122.0012.059.106.005.00
131.7011.008.305.494.48
141.3810.077.615.004.15
151.219.28
7.014.25
3.79
161.038.436.454.23
3.51
170.917.766.023.853.21
180.817.215.483.583.01
190.706.805.213.082.45
200.616.314.343.562.76
210.545.804.432.782.34
220.505.404.212.642.15
230.435.003.875.432.15
240.364.693.562.332.00




Segments:

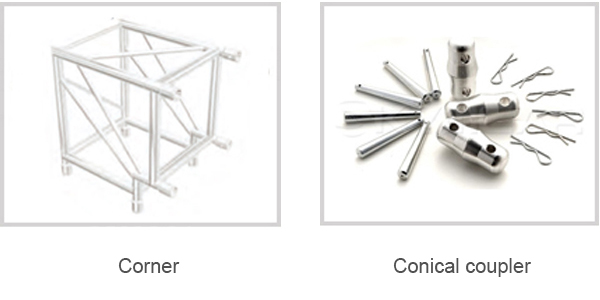

 lCorners







 lAccessories
