S4030-Spigot Truss 400x290mm

S4030-Spigot Truss 400x290mm

Skymear spigot truss S4030 is adapted for Trade Fair Construction,Shop Fitting and Advertisement. This single tube offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION



Model No.:

S4030


Size:

400 x 290 mm

Main tube:

50 x 3 mm


Brace:

25 x 3 mm

Available length:

0.5 - 4 m


Span:

18 m

Material:

Alu 6082 / 6061


Connector:

Conical coupler




Overview




Skymear Spigot Truss 400x300mm is our another type of durable truss systems, which has superior performance,durability and tongue connection and are ideal solutions for large truss structures, towers and gantries. This truss has compact construction,optimum strength,high-tech appearance and outstanding weight loading capacities, and can be applied for all forms of rigging towers, exhibition gantries and large concert stages.   It is possible to do a powder coating or a high gloss/hand polished design within the delivery periode. S4030 truss is fast and easy-to-use, and typically used for glow totems, trade show displays,trade show booths and indoor& outdoor events,trade fair construction,shop fitting and advertisement.


All our aluminum trusses are made in China.We can do OEM for your customized service and provide our factory price directly to you.




Key Benefits:



l Compact, light, mobile product

l  Great strength to weight ratio

l  Safe and big loading capacity

l  No deflection in its connection point

l  Welding points are smooth

l  Fast and easy to assemble

l  Powder coating or a high gloss/hand

   polished design




Tables:




 lS4030 Series

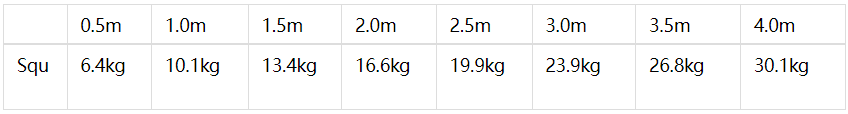

    S4030-Standard Lengths & Weights  Available



0.5m1.0m1.5m2.0m2.5m3.0m3.5m4.0m
Squ6.4kg10.1kg13.4kg16.6kg19.9kg23.9kg26.8kg30.1kg



 lS4030SQU- Square



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S4030SQU offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

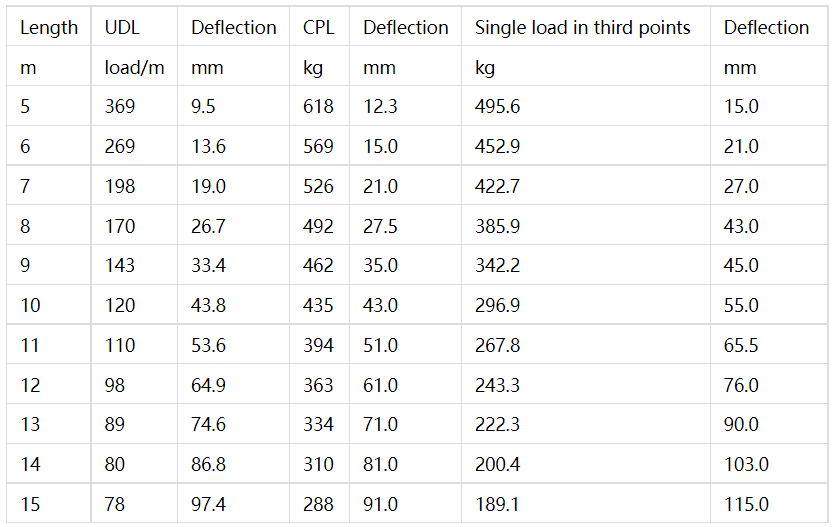

    S4030SQU-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mmmkgmmkgmm







45608.567710.0555.510.0
5369
9.5
61812.3495.6
15.0
626913.6569
15.0
452.9
21.0
7198
19.0
52621.0
422.7
27.0
817026.7492
27.5385.9
43.0
9143
33.4
46235.0342.2
45.0
1012043.8435
43.0
296.9
55.0
1111053.639451.0267.865.5
129864.936361.0243.376.0
138974.633471.0222.390.0
148086.831081.0200.4103.0
157897.4
288
91.0189.1
115.0
1669111.8
27099.0173.9
127.0
1754125.0252112.0161.3143.0
1848137.0237115.0150.8158.0
