S400-Spigot Truss 400x400mm

S400-Spigot Truss 400x400mm

Skymear spigot truss S400 is adapted for Trade Fair Construction,Shop Fitting and Advertisement. This single tube offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION



Model No.:

S400


Size:

400 x 400 mm

Main tube:

50 x 3 mm


Brace:

25 x 2 mm

Available length:

0.5 - 4 m


Span:

18 m

Material:

Alu 6082 / 6061


Connector:

Conical coupler




Overview




Skymear Spigot Truss 400x400mm is our another type of durable truss systems, which has superior performance,durability and tongue connection and are ideal solutions for large truss structures, towers and gantries. This truss has compact construction,optimum strength,high-tech appearance and outstanding weight loading capacities, and can be applied for all forms of rigging towers, exhibition gantries and large concert stages.   It is possible to do a powder coating or a high gloss/hand polished design within the delivery periode. S400 truss is fast and easy-to-use, and typically used for glow totems, trade show displays,trade show booths and indoor& outdoor events,trade fair construction,shop fitting and advertisement.


All our aluminum trusses are made in China.We can do OEM for your customized service and provide our factory price directly to you.




Key Benefits:



l Compact, light, mobile product

l  Great strength to weight ratio

l  Safe and big loading capacity

l  No deflection in its connection point

l  Welding points are smooth

l  Fast and easy to assemble

l  Powder coating or a high gloss/hand

   polished design




Tables:




 lS400 Series

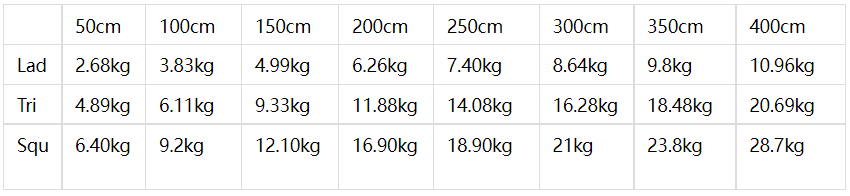

    S400-Standard Lengths & Weights  Available



50cm100cm150cm200cm250cm300cm350cm400cm
Lad2.68kg
3.83kg4.99kg6.26kg7.40kg8.64kg9.8kg10.96kg
Tri4.89kg6.11kg9.33kg11.88kg14.08kg16.28kg18.48kg20.69kg
Squ6.40kg9.2kg12.10kg16.90kg18.90kg21kg23.8kg28.7kg

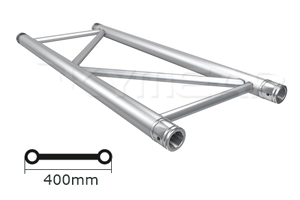

lS400LAD- Ladder



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S400LAD offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

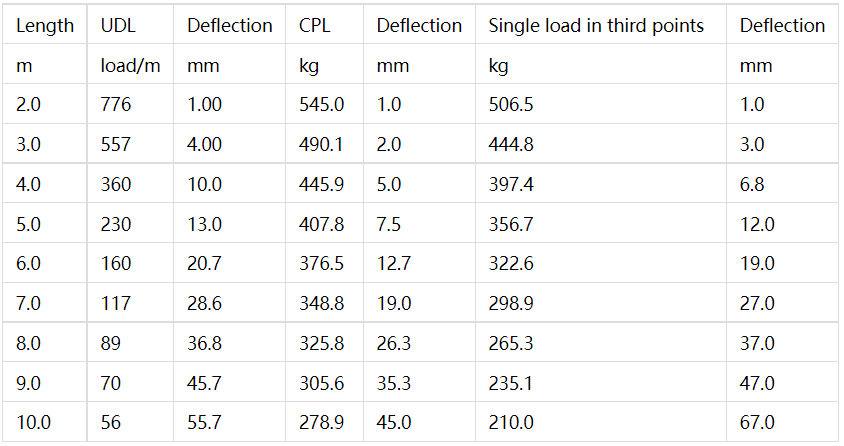

    S400LAD-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mmmkgmmkgmm







2.07761.00
545.01.0506.51.0
3.05574.00490.12.0444.8
3.0
4.0360
10.0445.9
5.0397.4
6.8
5.0230
13.0407.8
7.5356.7
12.0
6.0160
20.7376.5
12.7322.6
19.0
7.011728.6348.819.0298.927.0
8.08936.8325.826.3265.337.0
9.07045.7305.635.3235.147.0
10.05655.7278.945.0210.067.0

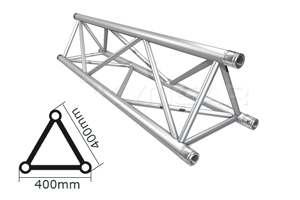

lS400TRI- Triangle



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S400TRI offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

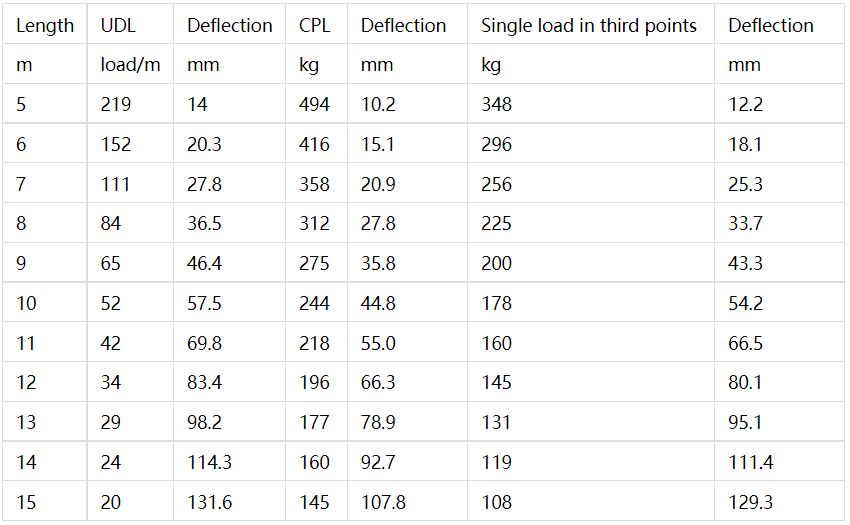

    S400TRI-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mmmkgmmkgmm







43398.86046.34197.4
52191449410.234812.2
615220.341615.129618.1
7111
27.835820.9256
25.3
88436.531227.822533.7
96546.427535.820043.3
105257.5
24444.8178
54.2
1142
69.821855.0
160
66.5
1234
83.4
19666.3
14580.1
132998.217778.913195.1
1424114.316092.7119111.4
1520131.6145107.8108129.3
1617150.3
131
124.599
148.6
17
15
170.3
119142.6
90
169.5
1812191.6107162.282192.0

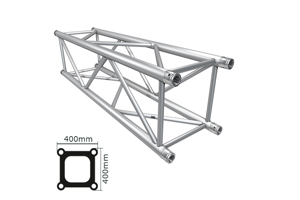

 lS400SQU- Square



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S400SQU offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

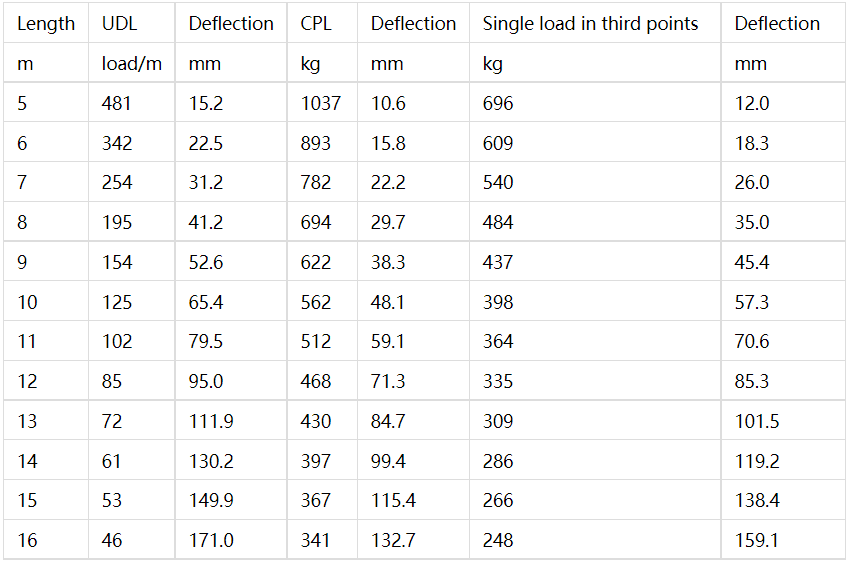

    S400SQU-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mmmkgmmkgmm







47169.212326.48097.1
5481
15.2
103710.6696
12.0
634222.5893
15.8
609
18.3
7254
31.2
78222.2
540
26.0
819541.2694
29.7484
35.0
9154
52.6
62238.3437
45.4
1012565.4562
48.1
398
57.3
1110279.551259.136470.6
128595.046871.333585.3
1372111.943084.7309101.5
1461130.239799.4286119.2
1553149.9
367
115.4266
138.4
1646171.0
341132.7248
159.1
1740193.5317151.4231181.4
1835217.5295171.5216205.3
1931242.9275193.0202230.8
2027269.8257216.1189257.9



Segments:

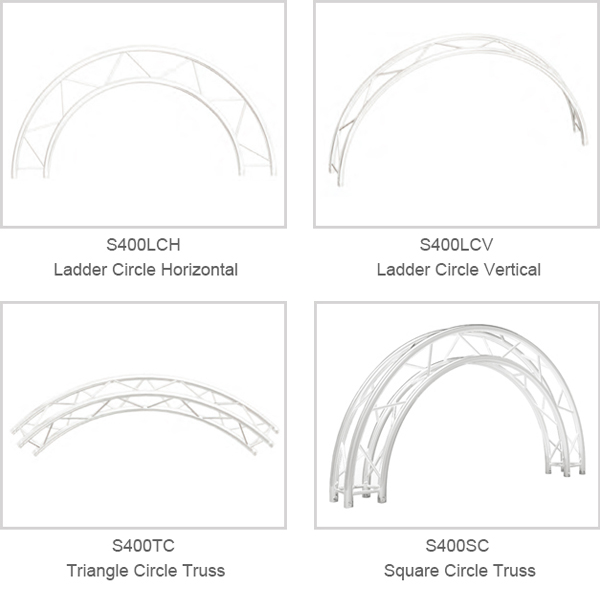

 lCircles












 lCorners














 lAccessories
