S290-Spigot Truss 290x290mm

S290-Spigot Truss 290x290mm

Skymear spigot truss S290 is adapted for Trade Fair Construction,Shop Fitting and Advertisement. This single tube offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION



Model No.:

S290


Size:

290 x 290 mm

Main tube:

50 x 3 mm


Brace:

25 x 2 mm

Available length:

0.5 - 4 m


Span:

18 m

Material:

Alu 6082 / 6061


Connector:

Conical coupler




Overview



Skymear Spigot Truss 290mm is our another type of durable truss systems, which has superior performance,durability and tongue connection and are ideal solutions for large truss structures, towers and gantries. This truss has compact construction,optimum strength,high-tech appearance and outstanding weight loading capacities, and can be applied for all forms of rigging towers, exhibition gantries and large concert stages.   It is possible to do a powder coating or a high gloss/hand polished design within the delivery periode. S290 truss is fast and easy-to-use, and typically used for glow totems, trade show displays,trade show booths and indoor& outdoor events,trade fair construction,shop fitting and advertisement.


All our aluminum trusses are made in China.We can do OEM for your customized service and provide our factory price directly to you.




Key Benefits:



l Compact, light, mobile product

l  Great strength to weight ratio

l  Safe and big loading capacity

l  No deflection in its connection point

l  Welding points are smooth

l  Fast and easy to assemble

l  Powder coating or a high gloss/hand

   polished design




Tables:




 lS290 Series

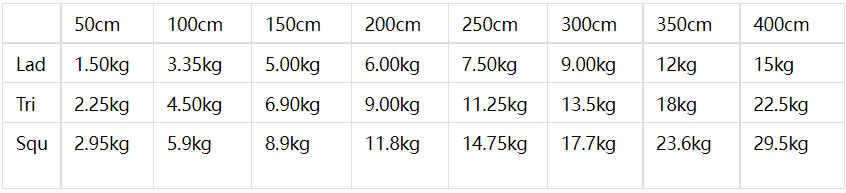

    S290-Standard Lengths & Weights  Available



50cm100cm150cm200cm250cm300cm350cm400cm
Lad1.50kg
3.35kg5.00kg6.00kg7.50kg9.00kg12kg15kg
Tri2.25kg4.50kg6.90kg9.00kg11.25kg13.5kg18kg22.5kg
Squ2.95kg5.9kg8.9kg11.8kg14.75kg17.7kg23.6kg29.5kg




lS290LAD- Ladder



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S290LAD offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

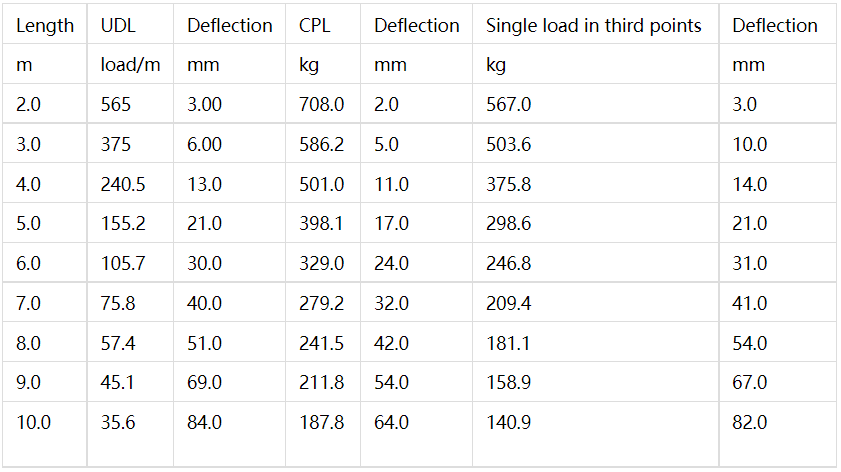

    S290LAD-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mmmkgmmkgmm







2.05653.00
708.02.0567.03.0
3.03756.00586.25.0503.6
10.0
4.0240.5
13.0501.0
11.0375.8
14.0
5.0155.2
21.0398.1
17.0298.6
21.0
6.0105.7
30.0329.0
24.0246.8
31.0
7.075.840.0279.232.0209.441.0
8.057.451.0241.542.0181.154.0
9.045.169.0211.854.0158.967.0
10.035.684.0187.864.0140.982.0




lS290TRI- Triangle



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S290TRI offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

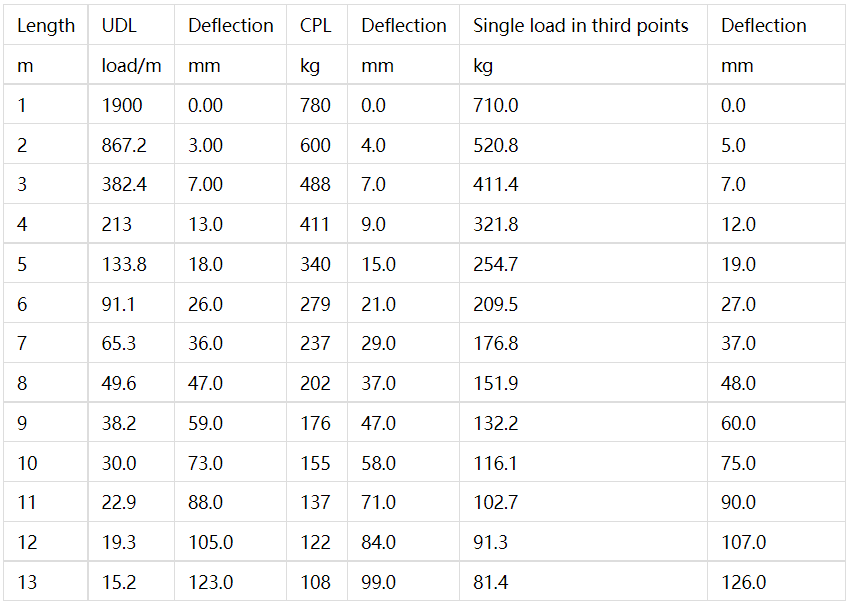

    S290TRI-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mmmkgmmkgmm







11900
0.00
780
0.0
710.0
0.0
2867.23.00
6004.0520.85.0
3382.47.004887.0411.47.0
421313.04119.0321.812.0
5133.818.034015.0254.719.0
691.126.027921.0209.527.0
765.3
36.023729.0176.8
37.0
849.647.020237.0151.948.0
938.259.017647.0132.260.0
1030.073.0
15558.0116.1
75.0
1122.9
88.013771.0
102.7
90.0
1219.3
105.0
12284.0
91.3
107.0
1315.2123.0
108
99.081.4
126.0
14
12.8
143.0
97114.0
72.6
146.0
1510.5158.087133.062.9162.0




 lS290SQU- Square



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S290SQU offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.





    S290SQU-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mmmkgmmkgmm







122740.1
912
2.5867.00.0
211340.1
7926.0727.01.5
37540.17016.5627.03.0
45011.06279.0550.59.0
5319
9.0
56811.3490.6
14.0
621912.3519
14.0
442.3
20.0
7158
18.0
47820.0
402.7
26.0
812025.4442
26.5365.9
42.0
993
32.4
41234.0322.2
44.0
107442.6383
42.0
286.9
54.0
116052.434450.0257.864.5
125063.031360.0233.375.0
134173.628470.0212.389.0
143485.826080.0194.1102.0
153096.9
238
90.0179.1
114.0
1625110.2
22098.0163.9
126.0
1722124.0202110.0151.3142.0
1820135.0187112.0140.8157.0



Segments:




 lCircles











 lCorners














 lAccessories
