S220-Spigot Truss 220x220mm

S220-Spigot Truss 220x220mm

Skymear spigot truss S220 is adapted for Trade Fair Construction,Shop Fitting and Advertisement. This single tube offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION



Model No.:

S220


Size:

220 x 220 mm

Main tube:

35 x 2 mm


Brace:

2 mm

Available length:

0.5 - 4 m


Span:

9 m

Material:

Alu 6082 / 6061


Connector:

Conical coupler




Overview



Skymear spigot truss 220x220mm has compact construction,optimum strength,high-tech appearance and outstanding weight loading capacities despite its small sizes and light self weight.  This truss offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.  It is possible to do a powder coating or a high gloss/hand polished design within the delivery periode. S220 truss is fast and easy-to-use, and typically used for glow totems, trade show displays,trade show booths and indoor& outdoor events,trade fair construction,shop fitting and advertisement.


All our aluminum trusses are made in China. We can do OEM for your customized service and provide our factory price directly to you.




Key Benefits:



l Compact, light, mobile product

l  Great strength to weight ratio

l  Safe and big loading capacity

l  No deflection in its connection point

l  Welding points are smooth

l  Fast and easy to assemble

l  Powder coating or a high gloss/hand

   polished design




Tables:




 lS220 Series

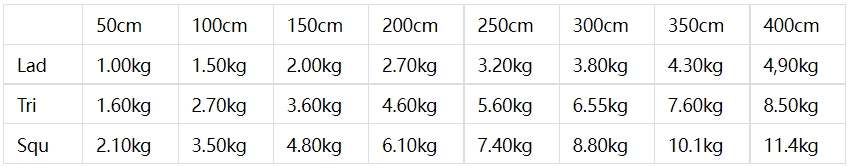

    S220-Standard Lengths & Weights  Available



50cm100cm150cm200cm250cm300cm350cm400cm
Lad1.00kg
1.50kg2.00kg2.70kg3.20kg3.80kg4.30kg4,90kg
Tri1.60kg2.70kg3.60kg4.60kg5.60kg6.55kg7.60kg8.50kg
Squ2.10kg3.50kg4.80kg6.10kg7.40kg8.80kg10.1kg11.4kg





lS220LAD- Ladder



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S220LAD offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

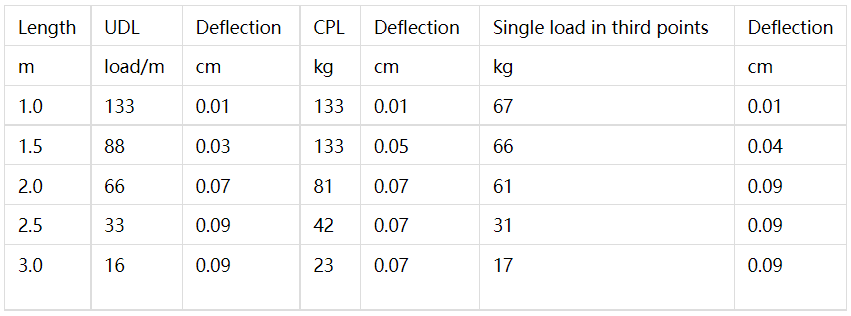

    S220LAD-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mcmkgcmkgcm







1.01330.01
1330.01670.01
1.5880.031330.05660.04
2.0660.07810.07610.09
2.5330.09420.07310.09
3.0160.09230.07170.09

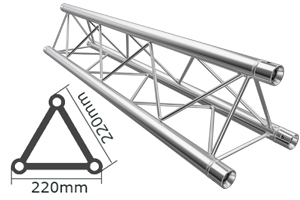

lS220TRI- Triangle



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S220TRI offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

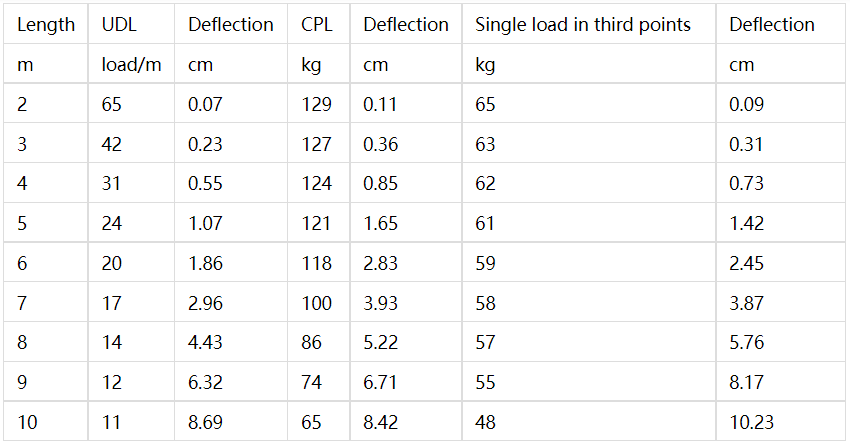

    S220TRI-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mcmkgcmkgcm







2650.07
1290.11650.09
3420.231270.36630.31
4310.551240.85620.73
5241.071211.65611.42
6201.861182.83592.45
7172.961003.93583.87
8144.43865.22575.76
9126.32746.71558.17
10118.69658.424810.23

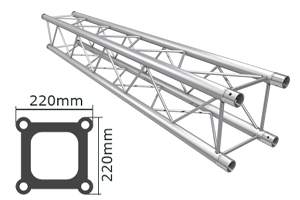

 lS220SQU- Square



This truss is adapted for trade show, shop fitting, exhibits & displays events despite its small size and light weight. S220SQU offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.

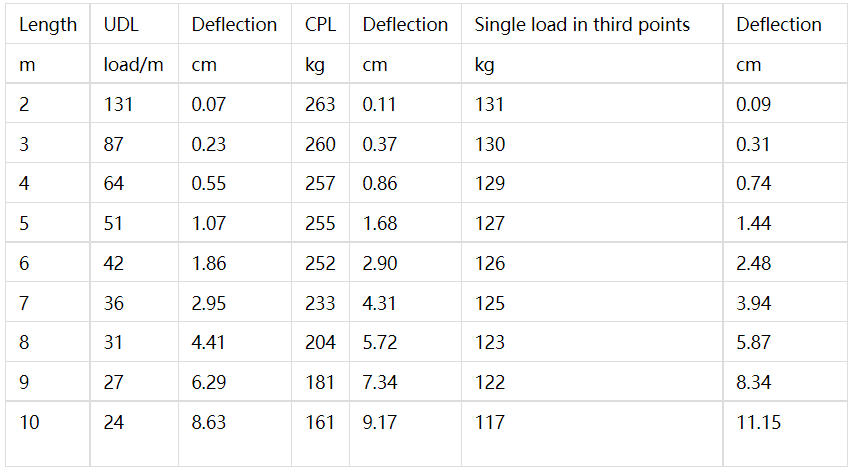

    S220SQU-Load Table


LengthUDLDeflectionCPLDeflectionSingle load in third pointsDeflection
mload/mcmkgcmkgcm







21310.07
2630.111310.09
3870.232600.371300.31
4640.552570.861290.74
5511.072551.681271.44
6421.862522.901262.48
7362.952334.311253.94
8314.412045.721235.87
9276.291817.341228.34
10248.631619.1711711.15




Segments:

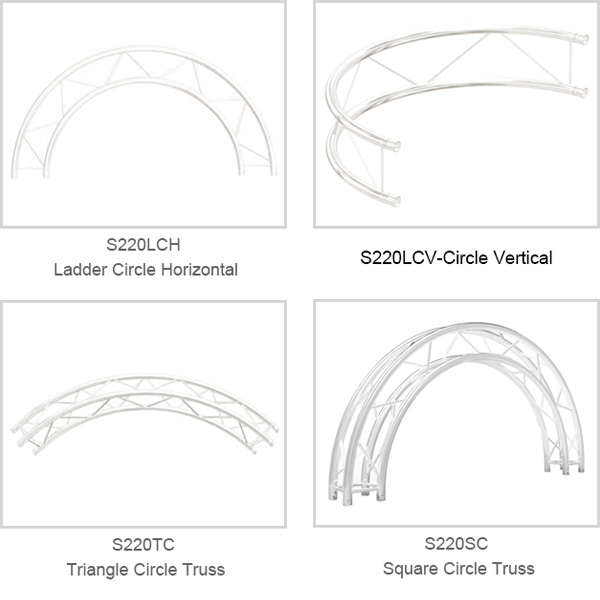

 lCircles










 lCorners














 lAccessories
