stage truss

Pitched Roof-8

Skymear Aluminum Pitched Roof Entertainment Truss is one of the heavy duty durable stage roofing truss systems, which offers best solutions for festivals, party, exhibitions, displays and indoor & outdoor events.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Aluminum Pitched Roof Entertainment Truss is tower-based aluminum stage truss roofing structures, which has superior performance, durability and tongue connection. The Pitched Stage Entertainment Truss Roof is the most commonly used solution for shading and rain protection. The roofing concert entertainment stage truss systems are ideal solutions for mega-concerts, festivals, parties and other outdoor big events.This roof truss roof system features compact construction, optimum strength, high-tech appearance and outstanding weight loading capacities. The concert entertainment stage truss gives it a dynamic look while contributing to efficient water drainage from the canopy. All our stage trusses are manufactured in different sizes, length and shapes from high-grade and lightweight aluminum, which are easy for transportation and setup, and are all according to European standard EN13814 and welding EN1090 and certificated by CE,TUV and SGS certifications.



Specification:


Product name:Aluminum truss pitched roof 08
Model No.
:Flat-Roof-8
Material:Aluminum alloy 6061-T6/6082-T6
Light-duty truss unit
:100*100mm, 150*150mm, 220*220mm
Medium-duty truss unit:300*300mm,400*400mm,450*450mm
Heavy-duty truss unit:520*520mm,600*700mm,600*900mm,670*1010mm
Standard shape:Ladder truss, Triangle truss, Square/Box truss
Special shape:Circle/Circular/Round/Arched/Curved truss, etc
Truss unit size:0.5m, 1m, 2m, 3m, 4m
Main tube
:50*3 mm
Brace tube :30*2 mm
Color:Silver, black or customized
Color process:Powder coating and anodize coating are available
Roof cover:PVC roof color and side walls available
Application:Stage truss, lighting truss, light truss, concert truss, entertainment truss, festivals, parties, aluminum truss, indoor & outdoor events, etc
Connector
:Conical Coupler/Bolted Screws



Features:


1)Feature: Non rust, light weight, strong, easy to set up

2)Fast connection for quick, simple and secure assembly

3)Operated with manual chain block or electric chain hoist

4)Supplied complete with internal wind bracing wires & connection accessories

5)Integrated tower base / stage components available

6)PA wing options available on request

7)Full structural calculation report & build manual available

8)CE, SGS & TUV certificated

9)OEM/ODM services



Solution:

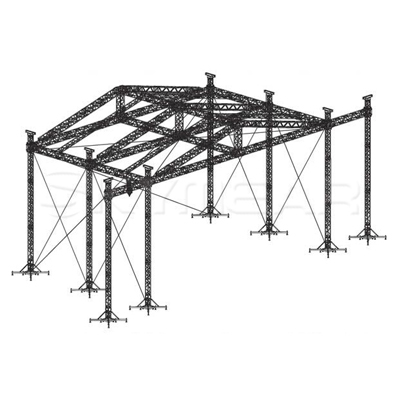

Skymear Aluminum Pitched Roof Entertainment Truss is the tower-based truss structure without rings, which area can be constructed in 3 different sizes, 30x20m, 25x20m,20x20m. It is the most professional choice for mega-concerts,festivals,party and other outdoor events. It features incredible strength,stability and speedy construction,and is the best choice for rental companies.



Dimensions:30*20 M
Loading capacity (UDL):28,3T UDL
Max. wind speed:28,4 m/s, 63,3 mph



Dimensions:25*20 M
Loading capacity (UDL):24,3T UDL
Max. wind speed:28,4 m/s, 63,3 mph



Dimensions:20*20 M
Loading capacity (UDL):20,2T UDL
Max. wind speed:28,4 m/s, 63,3 mph



Segments:


Skymear Aluminum Pitched Roof Entertainment Truss is the tower-based truss structure without rings, which consists of truss sections,top section,sleeve block,basement, and hoists. It features incredible strength,stability and speedy construction,and is the best choice for rental companies.


a) Stage truss sections:



b) Tower systems


c) Accessories



Skymear Aluminum Pitched Roof Entertainment Truss is the most professional choice for mega-concerts,festivals,party and other outdoor events.
