PA-05-Heavy Duty PA Tower 1000 Plus

PA-05-Heavy Duty PA Tower 1000 Plus

Stage ;Lighting ;Truss ;Design, ;We ;are ;your ;best ;choice ;,We ;can ;do ;OEM ;for ;your ;customized ;service ;and ;provide ;our ;factory ;price ;directly ;to ;you.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION




Overview



Skymear Heavy Duty PA Tower 1000 Plus consists of 400x400mm truss sections, which has superior performance,durability and tongue connection and are ideal solutions for large truss structures, towers and gantries. This truss has compact construction,optimum strength,high-tech appearance and outstanding weight loading capacities, and can be applied for all forms of roofing truss, exhibition gantries, large concerts and outdoor events.It is possible to do a powder coating or a high gloss/hand polished design within the delivery periode. S400 truss is fast and easy-to-use, and typically used for glow totems, trade show displays,trade show booths and indoor& outdoor events,trade fair construction,shop fitting and advertisement.


All our aluminum trusses are made in China.We can do OEM for your customized service and provide our factory price directly to you.




Key Benefits:



l Compact, light, mobile product

l  Great strength to weight ratio

l  Safe and big loading capacity

l  No deflection in its connection point

l  Welding points are smooth

l  Fast and easy to assemble

l  Powder coating or a high gloss/hand

   polished design




Specifications:





PA-05- Heavy Duty PA Tower 1000 Plus

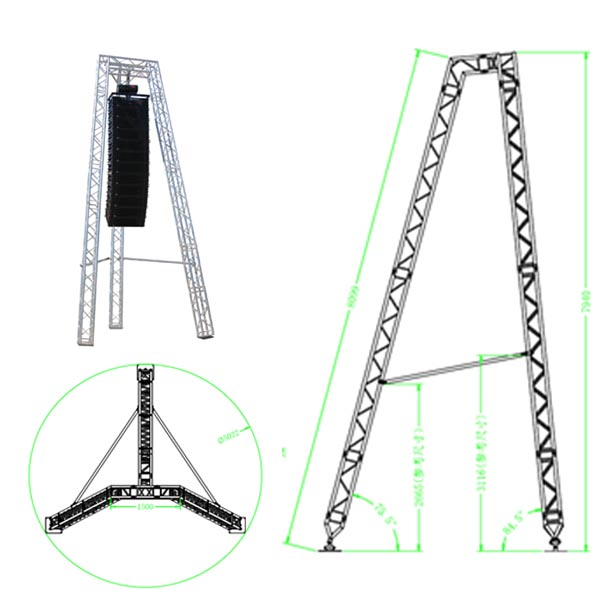

Skymear Heavy Duty PA tower 1000 Plus is a heavy-duty self climbing truss tower which is an ideal choice for small events & ground support. It is the right choice for working with smaller outdoor stages and concert stages.It offers an optimum lifting capacity and indicate a low transport volume with its lightweight construction. It is possible to do a powder coating or a high gloss/hand polishied design within the delivery periode.






Specifications



Model No.:

PA-05


Size:

400 x 400 mm

Main tube:

50 x 3 mm


Brace:

25 x 2 mm

Available length:

0.5 - 4 m


Height:

7.8 m

Self Weight:

200 kg


SWL:

800 kg

Material:

Alu 6082 / 6061


Connector:

Conical coupler





 l Relevant products










Specifications:


l  Material: Alu 6082/6061

l  Main tube: 50*3mm

l  Brace tube: 25*2mm

l  Max. height: 7.8M

l  Height:7M

l  Loading capacity:800KG
