Queen Bee® Polyurethane Cable Protector Launched Newly

[2016-12-10]


Overview:


Our Queen Bee Polyurethane Cable Protectors can effectively protect cables and wires from damage caused by heavy equipment while providing safe crossing for pedestrian and vehicle traffic. Cables, cords, and hoses up to 0.75"(19mm) diameter can be easily placed into the proper channels under the reinforced, hinged lid, which makes cable placement a breeze, and a five-bar tread pattern on the surface providing maximum traction. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These Cable Protectors can extend to any necessary length with the connectors.


All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.



Product Features:


1. Provide safe and easy crossing for pedestrian and vehicle in high traffic areas

2. Support high loading capacity for heavy equipment

3. Maximum traction with patented tread on the reinforced hinged lid

4. Warning symbols molded into lid surface with universal safety color for high visibility

5. Dog-bone design connectors interlock modular ramps together firmly

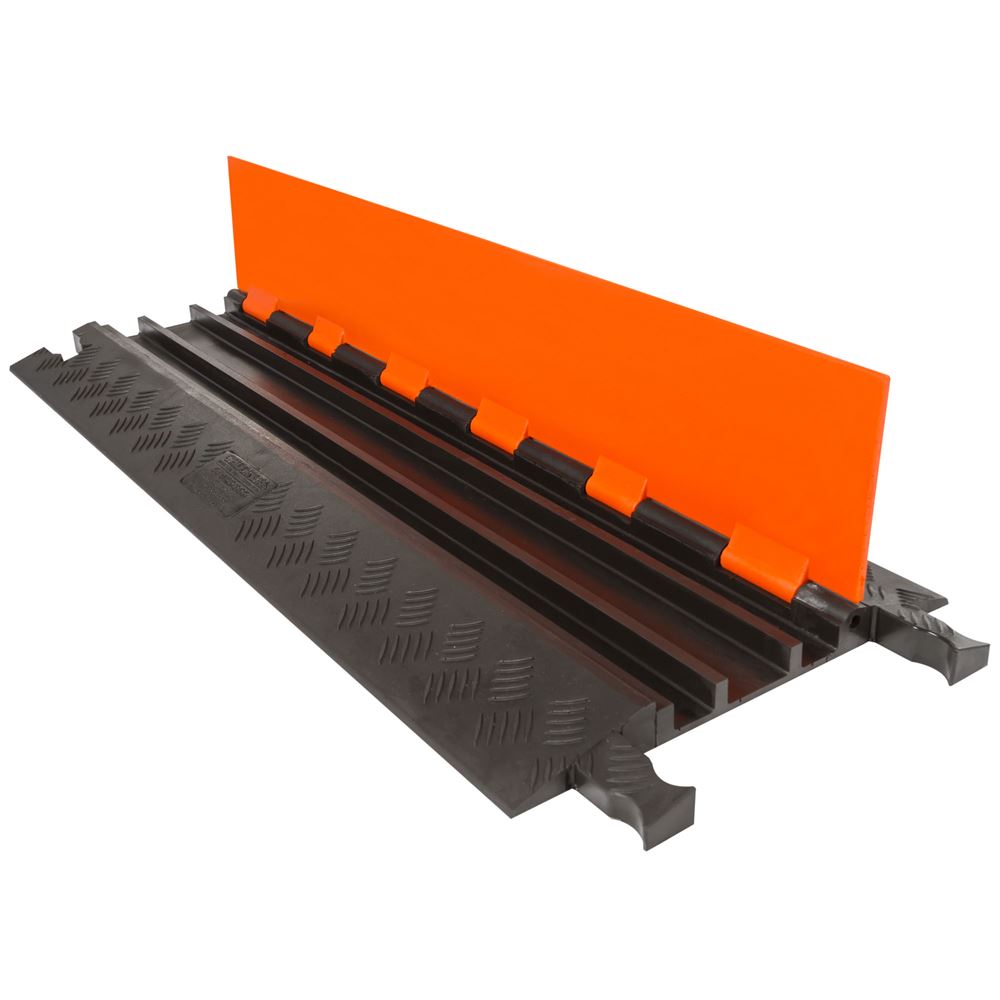

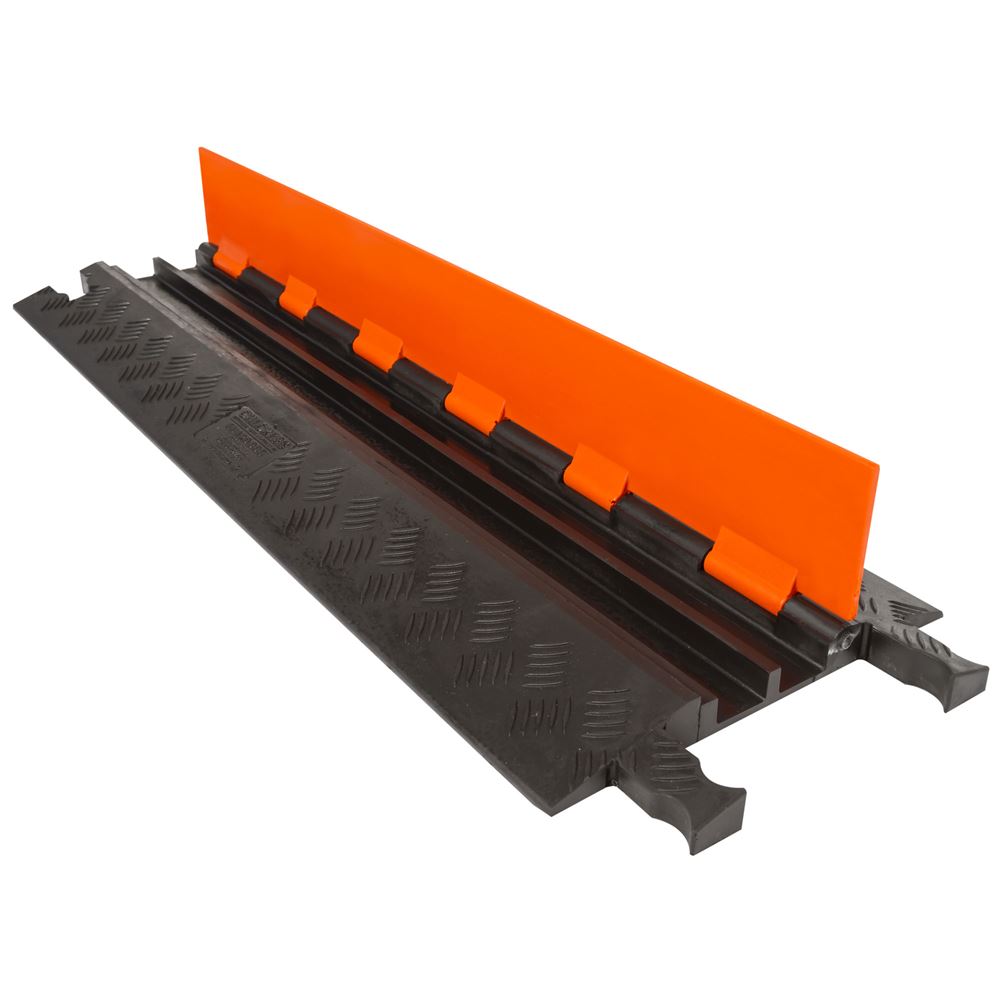

Polyurethane 2-channel Cable Protector


Specifications:


1. Overall Dimensions:36"(L)x14"(W)x1.25"(H)/914mm(L)x351mm(W)x32(H)mm

2. Channel dimensions:1.32"(W)x1.33"(H)/33mm(W)x34mm(H)

3. Self-weight:12.20 lbs/5.53 kg

4. Color: Red lid & Black ramp

5. Material:Polyurethane (PU)

6. Loading capacity:34000 lbs/15422 kg per axle


Polyurethane 3-channel Cable Protector


Specifications:


1. Overall Dimensions:36"(L)x14"(W)x1.25"(H)/914mm(L)x351mm(W)x32(H)mm

2. Channel dimensions:1.32"(W)x1.33"(H)/33mm(W)x34mm(H)

3. Self-weight:12.20 lbs/5.53 kg

4. Color: Red lid & Black ramp

5. Material:Polyurethane (PU)

6. Loading capacity:34000 lbs/15422 kg per axle

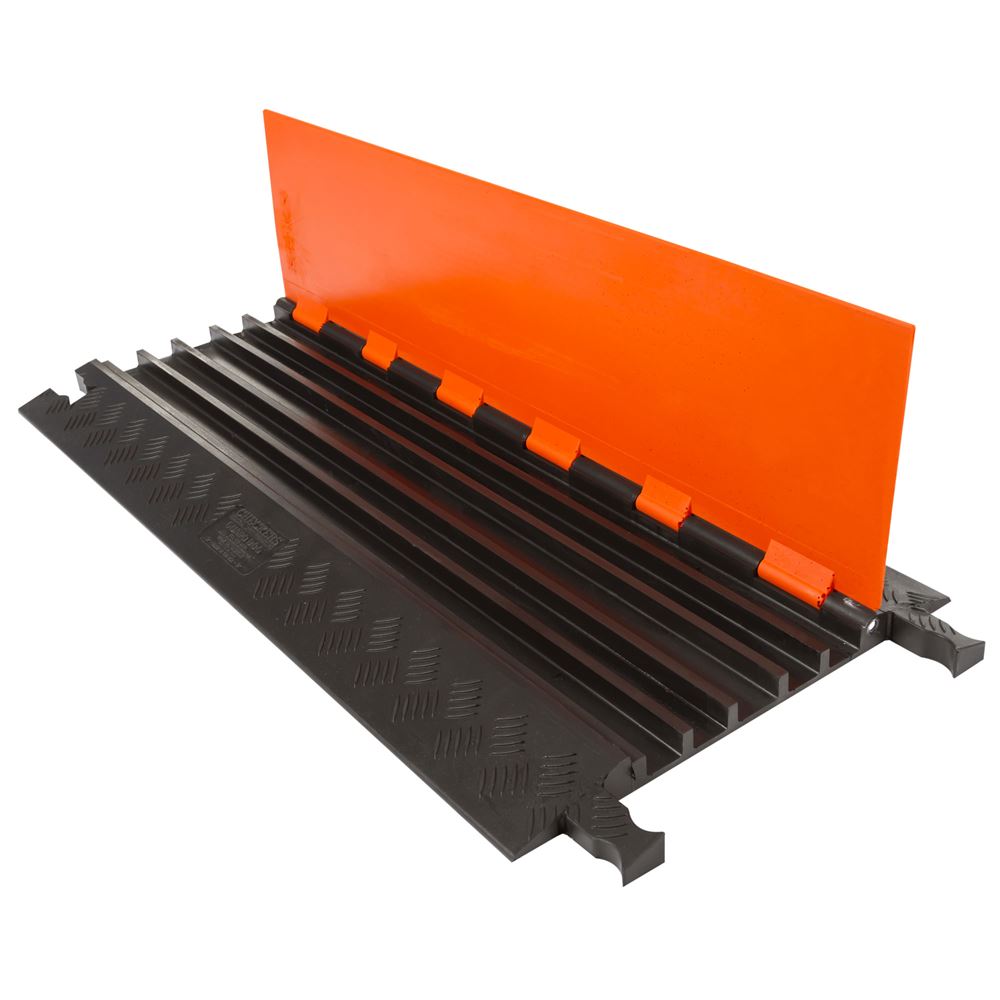

Polyurethane 5-channel Cable Protector


Specifications:


1. Overall Dimensions:36"(L)x17"(W)x1.25"(H)/914mm(L)x432mm(W)x32(H)mm

2. Channel Dimensions:1.32"(W)x1.33"(H)/33mm(W)x34mm(H)

3. Self-weight:14.75 lbs/6.69 kg

4. Color: Red lid & Black ramp

5. Material:Polyurethane (PU)

6.Loading capacity:48000 lbs/21744 kg per axle
