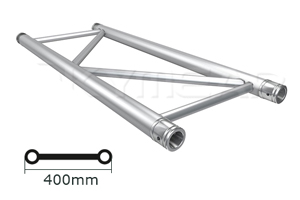

Spigot Ladder Truss 400mm

stage truss

Spigot Ladder Truss 400mm

Skymear Hot Sale Lighting Ladder Truss 400mm comes with aluminum bolt connection with welds and in multiple sizes for lighting show and multiple applications, such as indoor and outdoor events, exhibitions, displays.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Lighting Ladder Truss Spigot 15.75"x15.75" is another type of our durable truss systems, which has superior performance, durability and tongue connection and are ideal solutions for theater, concert, performance arts, or tradeshows, arenas and stadiums. This lighting ladder truss allows lighting designers the freedom to hang LED where ever they choose, which has compact construction, optimum strength, high-tech appearance and outstanding weight loading capacities, and can be applied for all forms of rigging towers, exhibition gantries and large concert stages.



Specification:


Product name:Spigot Truss 400mm/15.75"
Model No.
:LA400
Material:Aluminum alloy 6061-T6/6082-T6

Truss width

:400mm
Standard shape:Ladder truss
Special shape:Circle/Circular/Round/Arched/Curved truss, etc
Main tube
:50*3.0 mm
Brace tube:25*2.0 mm
Color:Silver, black or customized

Color

process

:Powder coating and anodize coating are available

Available length

:0.5m, 1m, 2m, 3m, 4m
Application:Stage truss, staging truss, lighting truss, light truss, DJ truss, DJ trussing booth, DJ trade shows, exhibition truss, church, exhibition truss
Connector
:Conical coupler



Features:


1)  Ergonomically friendly

2)  TUV – SGS certified. Load tested + inspected.

3)  Safe and big loading capacity

4)  No deflection in its connection point

5)  Most sizes stock immediate shipping

6)  Fast and easy to assemble

7)  Powder coating or a high gloss/hand polished design

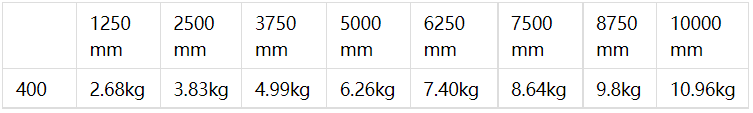

Standard lengths & weights:


Skymear Lighting Ladder Truss is typically fabricated from 2 inch round aluminum tubes referred to as chords. Truss sections generally consist of 2, 3 or 4 chords. Two chord light truss is often referred to as Ladder Truss, three chord truss are often referred to as Triangle Truss and four chords would be a box truss.




Segments:


● Spigot Ladder Truss 400mm/15.75"





● Spigot Circle Truss 290mm/12"



Accessories:



Skymear Lighting Ladder Truss comes in sectional lengths that may be connected together to create longer spans or different shapes. These truss structures are used to support lighting, audio and video equipment.
