Polyurethane 3-channel Cable Protector

Polyurethane 3-channel Cable Protector

Polyurethane ;Three-channel ;cable ;protector ;with ;black ;rubber ;base ;and ;yellow ;plastic ;two-piece ;flaps, ;interlock ;design ;between ;each ;two ;protectors. ;Used ;especially ;for ;three-channel ;small ;cables.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION



Overview:




Our Queen Bee Three-Channel Polyurethane Cable Protectors can effectively protect cables and wires from damage caused by heavy equipment weighing up to 34,000 lbs  (15422kg) per axle while providing safe crossing for pedestrian and vehicle traffic. Cables, cords, and hoses up to 0.75"(19mm) diameter can be easily placed into the proper channels under the reinforced, hinged lid, which makes cable placement a breeze, and a five-bar tread pattern on the surface providing maximum traction. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These Three-Channel Cable Protectors can extend to any necessary length with the connectors.


* Protect cables and hoses up to 0.75"(19mm) in diameter
* Support up to 34,000 lbs (15422kg) per axle
* Features three cable channels
* All-weather polyurethane construction weighs 12.20 lbs (5.53kg)
* Male and female connectors


All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.




Product Features:




1. Provide safe and easy crossing for pedestrian and vehicle in high traffic areas
2. Support high loading capacity 34,000 lbs (15422kg) per axle for heavy equipment
3. Maximum traction with patented tread on the reinforced hinged lid
4. Warning symbols molded into lid surface with universal safety color for high visibility

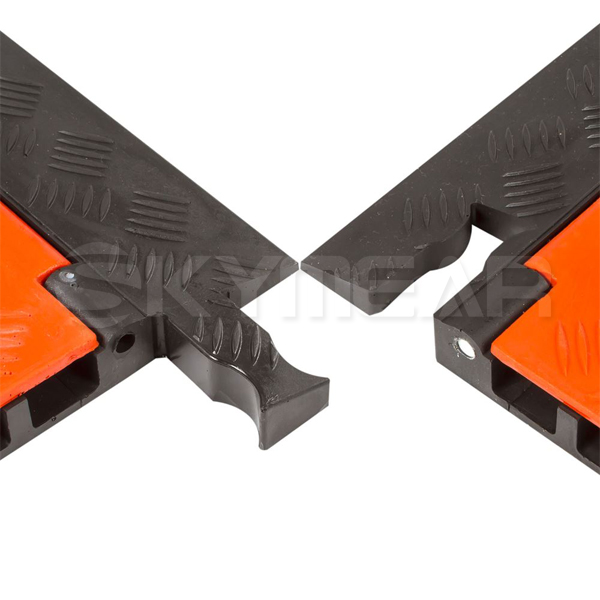

5. Dog-bone design connectors interlock modular ramps together firmly




Specifications:

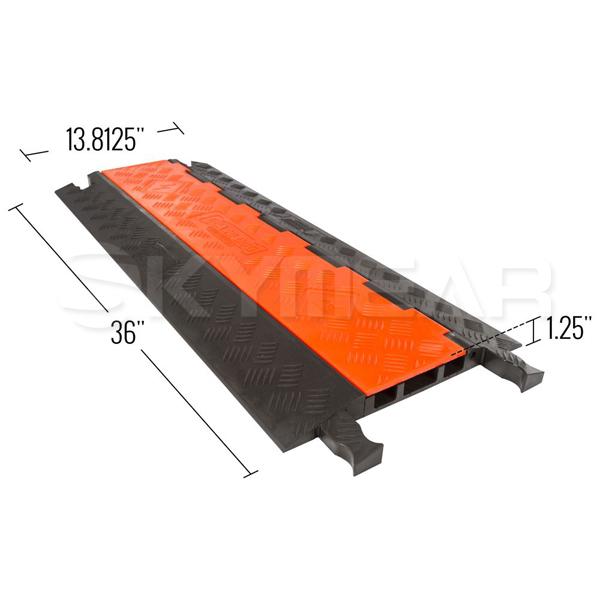

1. Overall Dimensions:36"(L)x14"(W)x1.25"(H)/914mm(L)x351mm(W)x32(H)mm
2. Channel dimensions:1.32"(W)x1.33"(H)/33mm(W)x34mm(H)
3. Self-weight:12.20 lbs/5.53 kg
4. Color: Red lid & Black ramp
5. Material:Polyurethane (PU)
6. Loading capacity:34000 lbs/15422 kg per axle
