Polyurethane 2-channel Cable Protector

stage truss

Polyurethane 2-channel Cable Protector

Skymear Polyurethane 2 Channel Cable Protector Ramp is made of strong, dense polyurethane used in the garage and outdoor events. It can provide protection for cords and cables from walk-over pedestrian and vehicle traffic.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Polyurethane 2 Channel Cable Protector Ramp can effectively protect cables and wires from damage caused by heavy equipment weighing up to 26,000 lbs (11783kg) per axle while providing safe crossing for pedestrian and vehicle traffic. Cables, cords, and hoses up to 0.75"(19mm) diameter can be easily placed into the proper channels under the reinforced, hinged lid, which makes cable placement a breeze, and a five-bar tread pattern on the surface providing maximum traction. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These Two-Channel Cable Protectors can extend to any necessary length with the connectors.


     * Protect cables and hoses up to 0.75"(19mm) in diameter

     * Support up to 26,000 lbs (11783kg) per axle

     * Features two cable channels

     * All-weather polyurethane construction weighs 9.05 lbs (4.1kg)

     * Male and female connectors


All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.



Features:


    1) Provide safe and easy crossing for pedestrian and vehicle in high traffic areas

    2) Support high loading capacity 26,000 lbs (11783kg) per axle for heavy equipment

    3) Maximum traction with patented tread on the reinforced hinged lid

    4) Warning symbols molded into lid surface with universal safety color for high visibility

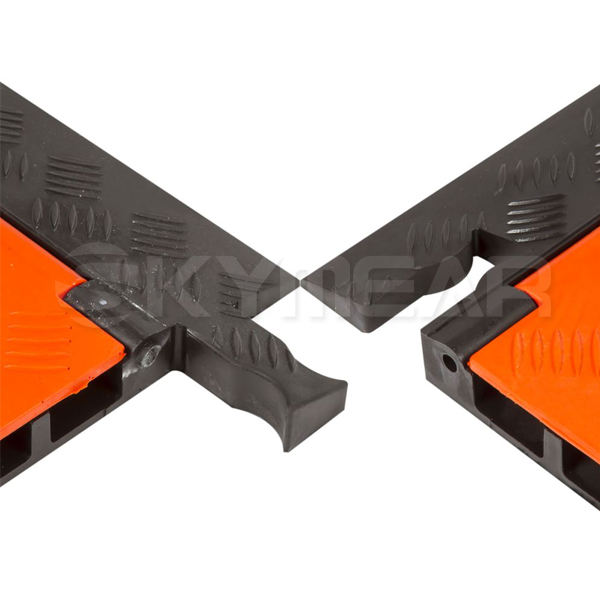

    5) Dog-bone design connectors interlock modular ramps together firmly



Specifications:

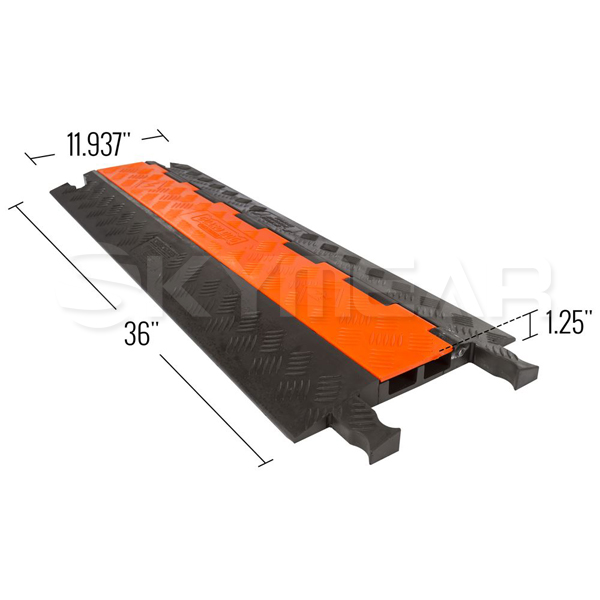

    1) Overall Dimensions:36"(L)x11.94"(W)x1.25"(H)/914mm(L)x303mm(W)x32(H)mm          2) Channel dimensions:1.32"(W)x1.33"(H)/33mm(W)x34mm(H)

    3) Self-weight:9.05 lbs/4.10 kg

    4) Color: Red lid & Black ramp

    5) Material:Polyurethane (PU)

    6) Loading capacity:26000 lbs/11783 kg per axle

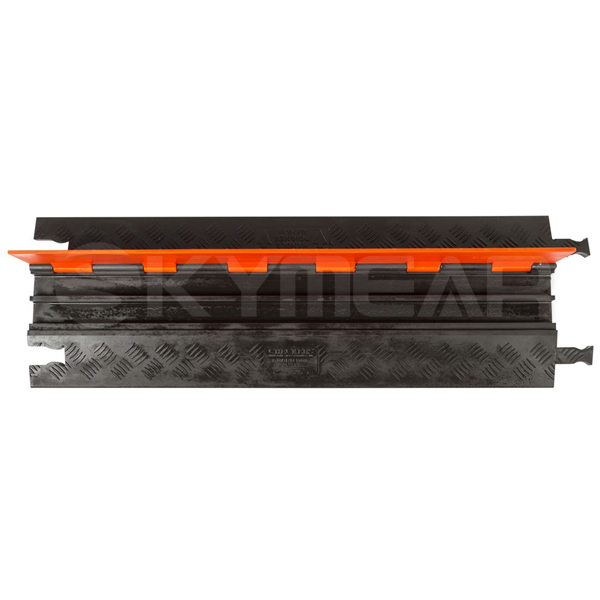

Photos:
