Heavy Duty 2-channel Cable Protector

stage truss

Heavy Duty 2-channel Cable Protector

Skymear Outdoor 2 Channel Cable Tray Rubber Protection is made of strong, dense rubber used in the garage and outdoor events. It can provide protection for cords and cables from walk-over pedestrian and vehicle traffic.

INQUIRE NOW

NEXT PRODUCT

PRODUCT DESCRIPTION

Skymear Outdoor 2 Channel Cable Tray Rubber Protection can effectively protect valuable cables and wires from damage caused by heavy-duty vehicle traffic. These cable ramps have been enlarged and strenthened on the rubber base and hinged PVC lid with diamond tread surfaces for enhanced foot and wheel traction. The lid with bright yellow color can increase the visibility for pedestrians and vehicles in high traffic areas. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These Two-Channel Cable Protectors can extend to any necessary length with the connectors.


    * Protect cables and hoses up to 3.25"(83mm) in diameter

    * Support up to 132,450 lbs (60,000 kg) per axle

    * Features two cable channels

    * All-weather yellow and black rubber construction weighs 80 lbs (36kg)

    * Male and female connectors


All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.



Features:


    1) Provide safe and easy crossing for pedestrian and vehicle in high traffic areas

    2) Support high loading capacity 132,450 lbs (60,000 kg) per axle for heavy equipment

    3) Maximum traction with diamond tread on the non-slip surface

    4) Warning symbols molded into lid surface with universal safety bright yellow for high visibility

    5) T-connectors interlock modular ramps together firmly



Specifications:


    1) Overall Dimensions:35"(L)x33.46"(W)x5.9"(H)/900mm(L)x850mm(W)x150(H)mm

    2) Channel Dimensions:3.54"(W)x3.54"(H)/90mm(W)x90mm(H)

    3) Self-weight:80 lbs/36 kg

    4) Color: Yellow lid & Black ramp

    5) Material:Rubber & PVC

    6) Loading capacity:132,450 lbs/60,000 kg per axle

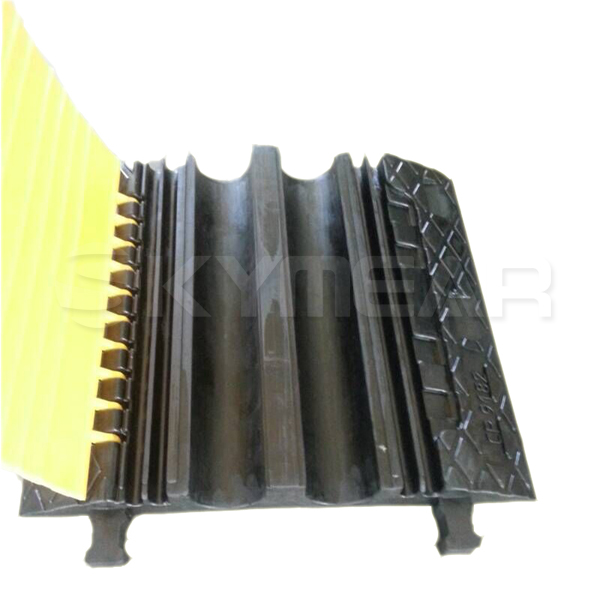

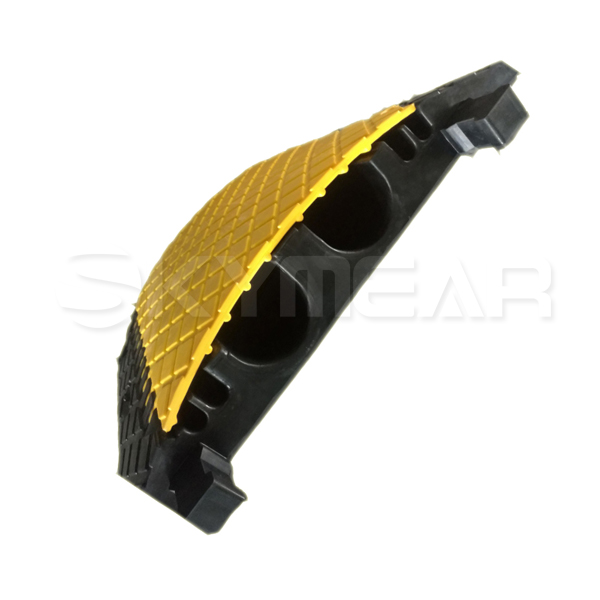

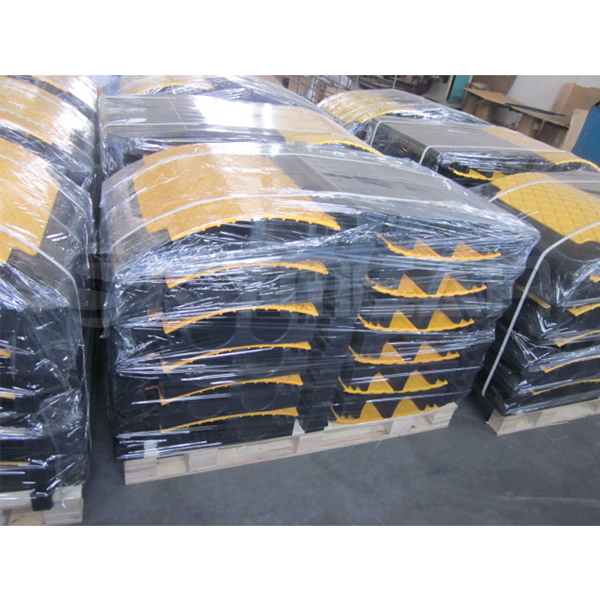

Photos:
